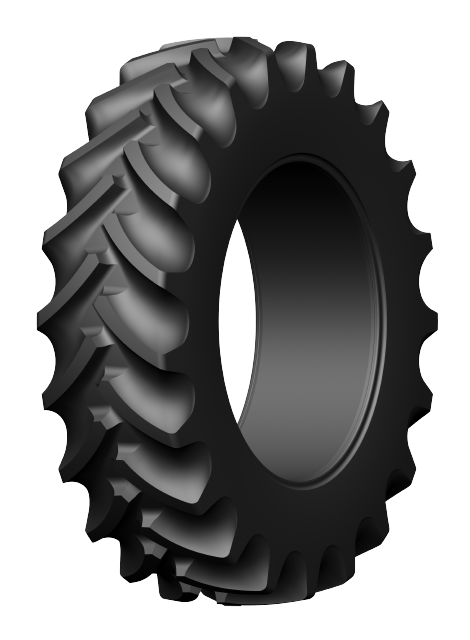

R-1W

Features & Benefits

Wider tread, to effectively decrease contact area pressure and benefit for the crop root.
Groove dispersive stress design, to make tread more puncture.
Deeper tread pattern, to provide more powerful traction.Deeper tread pattern, to provide more powerful traction.
Wear resistant compound, to prolong tire service life.
Radial tire gives better riding comfort, long tread life on the road and saves working hours.

Technical Data

Size	Load Index	Speed Symbol	Type	Section Width (mm)	Overall Diam. (mm)	Infl. (kPa)	Max. Load (kg)	Rim	Tread Depth（mm）
280/70R18	114	D	TL	282	849	240	1180	9.00	37.0
280/70R20	116	D	TL	282	900	240	1250	9.00	37.0
320/70R20	113	D	TL	319	982	160	1150	10.00	38.5
360/70R20	129	D	TL	357	1042	240	1850	11.00	39.0
280/85R20	112	A8/B	TL	282	984	160	1120	9.00	40.0
380/70R20	132	D	TL	380	1082	240	2000	12.00	40.0
280/85R24	115	A8/B	TL	282	1086	160	1215	9.00	43.0
320/70R24	116	D	TL	319	1094	160	1250	10.00	49.1
320/85R24	122	A8/B	TL	319	1154	160	1500	10.00	44.0
340/85R24	125	A8/B	TL	343	1188	160	1650	11.00	45.0
360/70R24	122	D	TL	357	1152	160	1500	11.00	51.0
360/70R24	127	D	TL	357	1152	240	1750	11.00	51.0
380/70R24	125	D	TL	381	1191	160	1651	12.00	52.9
380/85R24	131	A8/B	TL	380	1256	160	1950	12.00	46.0
420/85R24	137	A8/B	TL	418	1324	160	2300	13.00	48.0
420/70R24	130	D	TL	418	1248	160	1900	13.00	45.0
420/70R24	136	D	TL	418	1248	240	2240	13.00	45.0
440/65R24	135	D	TL	441	1182	240	2180	14.00	45.0
540/65R24	146	D	TL	550	1312	240	3000	18.00	63.0
14.9R26	127	A8/B	TL	378	1316	160	1750	13.00	47.0
14.9R26	132	A8/B	TL	378	1316	210	2000	13.00	47.0
620/75R26(23.1R26)	166	D	TL	625	1590	320	5300	20.00	55.0
320/70R28	119	D	TL	319	1189	160	1360	10.00	51.7
320/85R28	124	A8/B	TL	319	1255	160	1600	10.00	44.0
360/70R28	125	D	TL	357	1251	160	1650	11.00	52.9
360/70R28	130	D	TL	357	1251	240	1900	11.00	52.9
380/70R28	127	D	TL	380	1293	240	2060	12.00	55.4
380/70R28	133	D	TL	380	1293	240	2060	12.00	55.4
380/85R28	133	A8/B	TL	380	1357	160	2060	12.00	46.0
420/85R28(16.9R28)	139	A8/B	TL	418	1425	160	2430	13.00	48.0
420/85R28(16.9R28)	144	A8/B	TL	418	1425	240	2800	13.00	48.0
440/65R28	138	D	TL	441	1283	240	2360	14.00	45.0
480/65R28	142	D	TL	479	1335	240	2650	W15L	49.0
540/65R28	142	D	TL	550	1413	160	2650	18.00	50.0
540/65R28	149	D	TL	550	1413	240	3250	18.00	50.0
600/65R28	147	D	TL	591	1491	160	3075	18.00	51.0
600/65R28	154	D	TL	591	1491	240	3750	18.00	51.0
340/85R28	127	A8/B	TL	343	1293	160	1750	11.00	45.0
420/70R28	133	D	TL	418	1349	160	2060	13.00	45.0
420/70R28	139	D	TL	418	1349	240	2430	13.00	45.0
480/70R28	140	D	TL	479	1421	160	2500	15.00	47.0
14.9R30	129	A8/B	TL	378	1400	160	1850	13.00	46.0
380/85R30	135	A8/B	TL	380	1408	160	2180	12.00	47.0
420/85R30(16.9R30)	140	A8/B	TL	418	1476	160	2500	13.00	48.0
420/90R30	147	A8/B	TL	418	1518	240	3075	13.00	48.0
460/85R30	145	A8/B	TL	455	1544	160	2900	16.00	52.0
480/70R30	141	D	TL	479	1478	160	2575	15.00	47.0
540/65R30	143	D	TL	550	1464	160	2725	18.00	50.0
540/65R30	150	D	TL	550	1464	240	3350	18.00	50.0
800/65R32	167	D	TL	798	1853	160	5450	27.00	60.0
800/65R32	172	D	TL	798	1853	240	6300	27.00	60.0
800/65R32	178	D	TL	798	1853	320	7500	27.00	60.0
900/60R32	181	D	TL	896	1893	320	8250	28.00	61.0
380/85R34	137	A8/B	TL	380	1510	160	2300	12.00	47.0
380/85R34	142	A8/B	TL	380	1510	240	2650	12.00	47.0
420/85R34	142	A8/B	TL	418	1578	160	2650	13.00	48.0
420/85R34	147	A8/B	TL	418	1578	240	3075	13.00	48.0
460/85R34	147	A8/B	TL	455	1646	160	3075	14.00	52.0
540/65R34	145	D	TL	550	1566	160	2900	18.00	50.0
540/65R34	152	D	TL	550	1566	240	3550	18.00	50.0
620/75R34	170	A8/B	TL	625	1794	320	6000	20.00	48.0
15.5R38	134	A8/B	TL	394	1569	160	2120	14.00	35.0
420/85R38	144	A8/B	TL	418	1679	160	2800	13.00	48.0
460/85R38	149	A8/B	TL	455	1747	160	3250	16.00	52.0
460/85R38	151	A8/B	TL	455	1747	240	3450	16.00	52.0
480/80R38	149	A8/B	TL	479	1733	160	3250	15.00	50.0
480/80R38	151	A8/B	TL	479	1733	240	3450	15.00	50.0
520/85R38 (20.8R38)	155	A8/B	TL	516	1849	160	4125	18.00	54.0
520/85R38 (20.8R38)	163	A8/B	TL	516	1849	160	4125	18.00	54.0
520/85R38 (20.8R38)	169	A8/B	TL	516	1849	360	5800	18.00	54.0
540/65R38	153	D	TL	550	1667	240	3650	18.00	63.0
580/70R38	155	D	TL	577	1827	160	3875	18.00	53.0
600/65R38	153	D	TL	591	1745	160	3650	18.00	51.0
600/65R38	159	D	TL	591	1745	240	4375	18.00	51.0
620/70R38	170	D	TL	625	1833	320	6000	20.00	52.0
650/65R38	157	D	TL	645	1811	160	4125	20.00	53.0
650/65R38	163	D	TL	645	1811	240	4875	20.00	53.0
650/85R38	173	A8/B	TL	645	2071	240	6500	20.00	61.0
710/70R38	166	D	TL	716	1959	160	5300	23.00	58.0
710/70R38	171	D	TL	716	1959	240	6150	23.00	58.0
710/70R38	178	D	TL	716	1959	340	7500	23.00	58.0
18.4R42	148	A8/B	TL	467	1850	160	3150	16.00	52.0
480/80R42	151	A8/B	TL	479	1835	160	3450	16.00	52.0
520/85R42(20.8R42)	157	A8/B	TL	516	1951	160	4125	16.00	54.0
520/85R42(20.8R42)	162	A8/B	TL	516	1951	240	4750	16.00	54.0
600/65R42	154	D	TL	591	1847	160	3750	18.00	51.0
620/70R42	160	D	TL	625	1935	160	4500	20.00	52.0
620/70R42	172	D	TL	625	1935	320	6300	20.00	52.0
650/65R42	158	D	TL	645	1913	160	4250	20.00	53.0
650/65R42	165	D	TL	645	1913	240	5150	20.00	53.0
320/90R46	148	A8/B	TL	319	1744	360	3150	10.00	40.0
380/90R46	149	A8/B	TL	380	1852	240	3250	12.00	48.0
480/80R46	152	A8/B	TL	479	1936	160	3550	16.00	52.0
480/80R46	158	A8/B	TL	479	1936	240	4250	16.00	52.0
320/90R50	150	A8/B	TL	319	1846	360	3350	10.00	40.0
480/80R50	159	A8/B	TL	479	2038	160	3750	16.00	52.0
320/90R54	151	A8/B	TL	319	1948	360	3450	10.00	40.0
IF580/80R34	177	A8/B	TL	576	1792	360	7300	19.00	55.0
IF800/70R38	179	D	TL	794	2085	160	7750	27.00	60.0
IF520/85R42	169	A8	TL	526	1951	240	5800	18.00	54.0
IF710/70R42	179	D	TL	716	2061	240	7750	25.00	60.0
IF600/70R30	159	D	TL	603	1602	160	4375	21.00	54.0
IF600/70R30CFO	173	A8	TL	603	1602	320	6500	DW21B	54.0
750/65R26CFO	171	D	TL	754	1636	320	6150	DW25B	56.0
460/85R34	152	D	TL	455	1646	240	3550	DW16L	51.0
650/85R38	173	D	TL	645	2071	240	6500	DW23B	61.0
