- Traction pattern suitable for front wheels of backhoe loader and wheel loaders.
- Designed for on and off-the-road services in any weather.
- Reinforced sidewall and strong nylon casing provides improved resistance to road hazards.

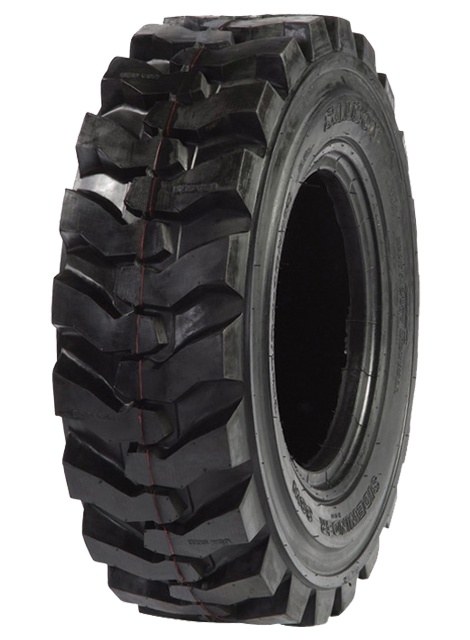

R-4C
Suitable for Bias AG Implement
Features & Benefits
Technical Data
| Size | Load Index | Speed Symbol | Type | Section Width (mm) | Overall Diam. (mm) | Infl. (kPa) | Max. Load (kg) | Rim | Tread Depth（mm） |
|---|---|---|---|---|---|---|---|---|---|
| 10-16.5 | 10 | A2 | TL | 264 | 773 | 520 | 2135 | 8.25 | 17 |
| 10-16.5 | 12 | A2 | TL | 264 | 773 | 620 | 2375 | 8.25 | 17 |
| 12-16.5 | 14 | A2 | TL | 307 | 831 | 620 | 3075 | 9.75 | 21 |
| 14-17.5 | 16 | A2 | TL | 349 | 921 | 630 | 4020 | 10.50 | 25.0 |
| 10.5/80-18 | 14 | A6 | TL | 274 | 881 | 480 | 1530 | W9 | 25.4 |
| 12.5/80-18 | 16 | A6 | TL | 308 | 962 | 490 | 2180 | W9 | 25.4 |
