- Suitable for sliding loader, shipper, off-road forklift, aerial work platform.
- The pattern is designed to provide excellent traction performance.
- Enhanced tire side and rim protection design.

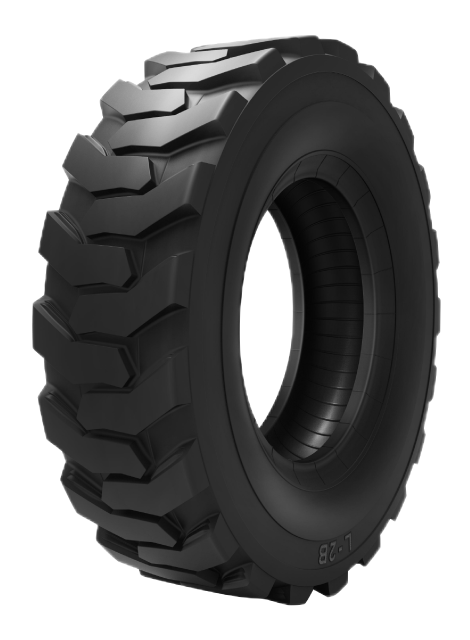

L-2B
Suitable for Industrial Pneumatic
Features & Benefits
Technical Data
| ERP No. | Tire Size | Ply Rating | Speed Symbol | Tire Type | Pattern | Section Width（mm） | Overall Diam. (mm) | Max.Speed（km/h） | Inflation Pressure（kPa） | Max. Load（kg） | Design Rim Width | Tire Valve |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A3ACC863 | 5.70-12 | 8 | A2 | TL | L-2B | 146 | 570 | 10 | 620 | 835 | 4.50 | CF01 |
| A3ACC838 | 10-16.5 | 8 | A2 | TL | L-2B | 264 | 773 | 10 | 410 | 1880 | 8.25 | CJ07 |
| A3ACC834 | 10-16.5 | 10 | A2 | TL | L-2B | 264 | 773 | 10 | 520 | 2135 | 8.25 | CJ07 |
| A3ACC837 | 12-16.5 | 10 | A2 | TL | L-2B | 264 | 831 | 10 | 450 | 2540 | 9.75 | CJ07 |
| A3ACC833 | 12-16.5 | 12 | A2 | TL | L-2B | 307 | 831 | 10 | 550 | 2865 | 9.75 | CJ07 |
| A3ACC922 | 14-17.5 | 14 | A2 | TL | L-2B | 349 | 921 | 10 | 550 | 3875 | 10.50 | CJ01 |
| A3ACC923 | 14-17.5 | 16 | A2 | TL | L-2B | 349 | 921 | 10 | 620 | 4125 | 10.50 | CJ01 |
| TBA | 23×8.50-12 | 6 | A2 | TL | L-2B | 213 | 574 | 10 | 340 | 820 | 7.00 | CF03 |
| A3ACC829 | 23×8.50-12 | 8 | A2 | TL | L-2B | 213 | 574 | 10 | 450 | 960 | 7.00 | CF03 |
| TBA | 23×8.50-12 | 10 | A2 | TL | L-2B | 213 | 574 | 10 | 550 | 1050 | 7.00 | CF03 |
| A3ACC830 | 27×8.50-15 | 8 | A2 | TL | L-2B | 216 | 660 | 10 | 410 | 1100 | 7JA | CJ01 |
| A3ACC862 | 27×8.50-15 | 10 | A2 | TL | L-2B | 216 | 660 | 10 | 480 | 1200 | 7JA | CJ01 |
| A3ACC986 | 27×10.50-15 | 8 | A2 | TL | L-2B | 259 | 691 | 10 | 410 | 1400 | 8LB | CJ01 |
