- Suitable for forestry shipping machine, slip loader, harvester.
- Super deep pattern, optional ordinary type and steel wire stab-proof tie reinforced tire.
- Non-directional pattern design and excellent wear resistance.
- Enhanced tire side and rim protection design.

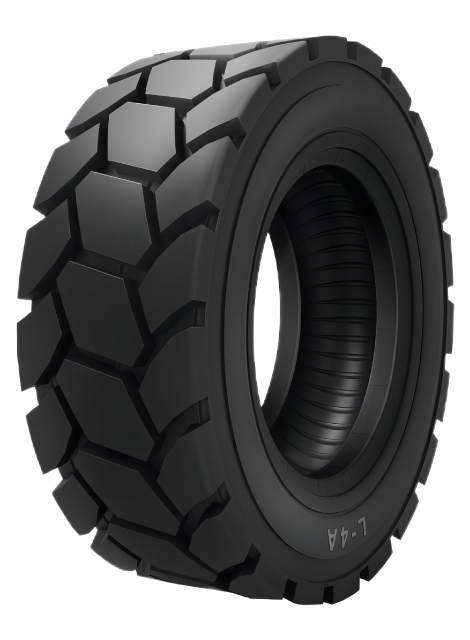

L-4A
Suitable for Industrial Pneumatic
Features & Benefits
Technical Data
| ERP No. | Tire Size | Ply Rating | Speed Symbol | Tire Type | Pattern | Section Width（mm） | Overall Diam. (mm) | Max.Speed（km/h） | Inflation Pressure（kPa） | Max. Load（kg） | Design Rim Width | Tire Valve |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A3ACC938 | 10-16.5(steel reinforced) | 10 | A2 | TL | L-4A | 264 | 773 | 10 | 520 | 2135 | 8.25 | CJ07 |
| A3ACC924 | 10-16.5 | 10 | A2 | TL | L-4A | 264 | 773 | 10 | 520 | 2135 | 8.25 | CJ07 |
| A3ACC937 | 10-16.5(steel reinforced) | 12 | A2 | TL | L-4A | 264 | 773 | 10 | 620 | 2375 | 8.25 | CJ07 |
| A3ACC926 | 10-16.5 | 12 | A2 | TL | L-4A | 264 | 773 | 10 | 620 | 2375 | 8.25 | CJ07 |
| A3ACC997 | 10-16.5(steel reinforced) | 14 | A2 | TL | L-4A | 264 | 773 | 10 | 670 | 2485 | 8.25 | CJ07 |
| A3ACC939 | 12-16.5(steel reinforced) | 12 | A2 | TL | L-4A | 307 | 831 | 10 | 550 | 2865 | 9.75 | CJ07 |
| A3ACC925 | 12-16.5 | 12 | A2 | TL | L-4A | 307 | 831 | 10 | 550 | 2865 | 9.75 | CJ07 |
| A3ACC936 | 12-16.5(steel reinforced) | 14 | A2 | TL | L-4A | 307 | 831 | 10 | 620 | 3075 | 9.75 | CJ07 |
| A3ACC927 | 12-16.5 | 14 | A2 | TL | L-4A | 307 | 831 | 10 | 620 | 3075 | 9.75 | CJ07 |
| A3ACC952 | 14-17.5 | 14 | A2 | TL | L-4A | 349 | 921 | 10 | 550 | 3875 | 10.50 | CJ01 |
| A3ACC948 | 14-17.5(steel reinforced) | 16 | A2 | TL | L-4A | 349 | 921 | 10 | 620 | 4125 | 10.50 | CJ01 |
| A3ACC947 | 14-17.5 | 16 | A2 | TL | L-4A | 349 | 921 | 10 | 620 | 4125 | 10.50 | CJ01 |
| A3ACC965 | 15-19.5(steel reinforced) | 14 | A2 | TL | L-4A | 389 | 1019 | 10 | 485 | 4565 | 11.75 | CJ07 |
| A3ACC957 | 15-19.5 | 14 | A2 | TL | L-4A | 389 | 1019 | 10 | 485 | 4565 | 11.75 | CJ07 |
