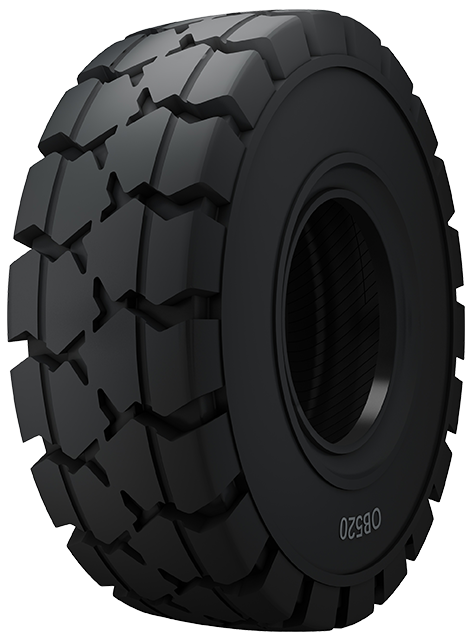

OB-520

The traditional large block pattern design, the grounding impression is optimized on the basis of the classic pattern OB502, which improves the service life.
As a high-end product in the same series of products, excellent tread rubber formula, improve wear resistance.
High strength nylon skeleton material, for the body safety escort.
Suitable for internal combustion forklift, electric forklift, port and other hard road.
New appearance design, product performance is stable.

Technical Data

ERP No.	Tire Size	Ply Rating	Speed Symbol	Tire Type	Pattern	Section Width（mm）	Overall Diam. (mm)	Max.Speed（km/h）	Inflation Pressure（kPa）	Max. Load（kg）	Design Rim Width
TBA	5.00-8NHS	10	A5	TT	470	137	25	1000	1150	3.50D-8	Z1-01-1
11ACC613	6.00-9NHS	10	A5	TT	540	160	25	860	1505	4.00E-9	Z1-01-1
11ACC606	6.50-10NHS	10	A5	TT	590	175	25	790	1655	5.00F-10	Z1-01-1
11ACC607	7.00-12NHS	12	A5	TT	676	190	25	860	2375	5.00S-12	Z1-01-1
11ACC608	8.25-15NHS	14	A5	TT	840	235	25	830	3775	6.5-15	Z1-01-5
TBA	16×6-8NHS	16*	A5	TT	425	152	25	1000	1495	4.33R-8	Z1-01-1
11ACC611	18×7-8NHS	14	A5	TT	465	173	25	970	1505	4.33R-8	JS1
11ACC610	21×8-9NHS	14	A5	TT	535	200	25	1000	2040	6.00E-9	Z1-01-4
TBA	21×8-9NHS	16*	A5	TT	535	200	25	1000	2755	6.00E-9	Z1-01-4
11ACC612	23×9-10NHS	14	A5	TT	595	225	25	900	2585	6.50F-10	Z1-01-4
TBA	23×10-12NHS	16	A5	TT	597	254	25	970	3220	8.00G-12	JS2
11ACC605	28×9-15NHS	14	A5	TT	710	220	25	970	3050	7.0-15	Z1-01-5
TBA	250-15NHS	16	A5	TT	735	250	25	930	3865	7.5-15	Z1-01-7
TBA	300-15NHS	20	A5	TT	840	300	25	930	5940	8.0-15	Z1-01-7
