- High puncture resistance.
- Strong load capacity.
- The square section ensures the stability of the vehicle.
- Low rolling resistance, low operating cost.
- Suitable for airports, ports, coal mines, foundries, glass processing plants, garbage stations and other places.

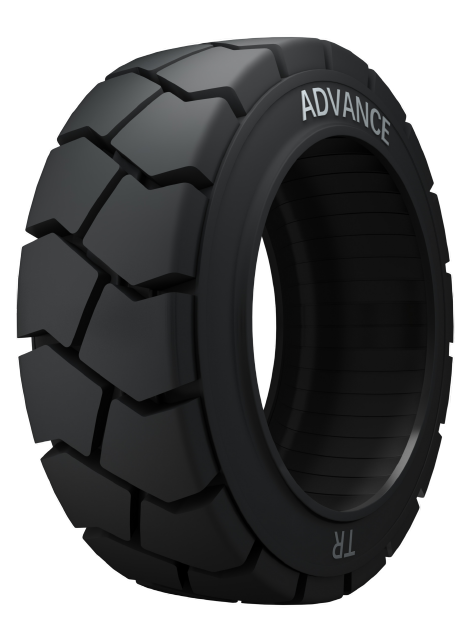

TR
Suitable for Pressed-on Solid
Features & Benefits
Technical Data
| ERP NO. | Tire Size | Pattern | Approved Rim | Tire Dimensions | Max. Load (kg) | Standard | Easi-Fit | Marking | No-Marking | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| S.W. | O.D. | Up to 25km/h | |||||||||
| （mm） | （mm） | DRIVER | STEER | ||||||||
| 11ASI357 | 12×5.5-8 | TR | 5.5-8 | 140 | 305 | 1095 | 995 | √ | √ | ||
| 11ASI370 | 13.5×5.5-8 | TR | 5.5-8 | 140 | 343 | 1235 | 1125 | √ | √ | ||
| 11ASI228 | 14×4.5-8 | TR | 4.5-8 | 114 | 356 | 960 | 870 | √ | √ | ||
| 11ASI430 | 14×5-10 | TR | 5-10 | 127 | 356 | 1095 | 995 | √ | √ | ||
| 11ASI237 | 15×5-11.25 | TR | 5-11.25 | 127 | 381 | 1145 | 1040 | √ | √ | ||
| 11ASI318 | 15×6-11.25 | TR | 6-11.25 | 152 | 381 | 1415 | 1285 | √ | √ | ||
| 11ASI414 | 15×8-11.25 | TR | 8-11.25 | 203 | 381 | 1960 | 1780 | √ | √ | ||
| 11ASI235 | 16×5-10.5 | TR | 5-10.5 | 127 | 406 | 1240 | 1125 | √ | √ | ||
| 11ASI236 | 16×6-10.5 | TR | 6-10.5 | 152 | 406 | 1570 | 1430 | √ | √ | ||
| 11ASI337 | 16×7-10.5 | TR | 7-10.5 | 178 | 406 | 1905 | 1730 | √ | √ | ||
| 11ASI227 | 16.25×5-11.25 | TR | 5-11.25 | 127 | 413 | 1250 | 1135 | √ | √ | ||
| 11ASI238 | 16.25×6-11.25 | TR | 6-11.25 | 152 | 413 | 1575 | 1430 | √ | √ | ||
| 11ASI342 | 16.25×7-11.25 | TR | 7-11.25 | 178 | 413 | 1900 | 1730 | √ | √ | ||
| 11ASI344 | 18×5-12.125 | TR | 5-12.125 | 127 | 457 | 1350 | 1225 | √ | √ | ||
| 11ASI229 | 18×6-12.125 | TR | 6-12.125 | 152 | 457 | 1720 | 1565 | √ | √ | ||
| 11ASI230 | 18×7-12.125 | TR | 7-12.125 | 178 | 457 | 2095 | 1905 | √ | √ | ||
| 11ASI231 | 18×8-12.125 | TR | 8-12.125 | 203 | 457 | 2470 | 2245 | √ | √ | ||
| 11ASI332 | 18×9-12.125 | TR | 9-12.125 | 229 | 457 | 2840 | 2580 | √ | √ | ||
| 11ASI232 | 21×7-15 | TR | 7-15 | 178 | 533 | 2355 | 2140 | √ | √ | ||
| 11ASI233 | 21×8-15 | TR | 8-15 | 203 | 533 | 2780 | 2525 | √ | √ | ||
| 11ASI346 | 21×9-15 | TR | 9-15 | 229 | 533 | 3200 | 2910 | √ | √ | ||
| 11ASI239 | 22×8-16 | TR | 8-16 | 203 | 559 | 2880 | 2615 | √ | √ | ||
| 11ASI234 | 22×9-16 | TR | 9-16 | 203 | 559 | 3315 | 3010 | √ | √ | ||
| 11ASI289 | 22×10-16 | TR | 10-16 | 254 | 559 | 3750 | 3410 | √ | √ | ||
| 11ASI309 | 22×12-16 | TR | 12-16 | 305 | 559 | 4625 | 4205 | √ | √ | ||
| 11ASI308 | 22×14-16 | TR | 14-16 | 356 | 559 | 5500 | 5000 | √ | √ | ||
| 11ASI450 | 33×14-22 | TR | 14-22 | 356 | 838 | 8070 | 6625 | √ | √ | ||
| TBA | 450×300-305 | TR | 300-305 | 300 | 450 | 3820 | 3470 | √ | √ | ||
